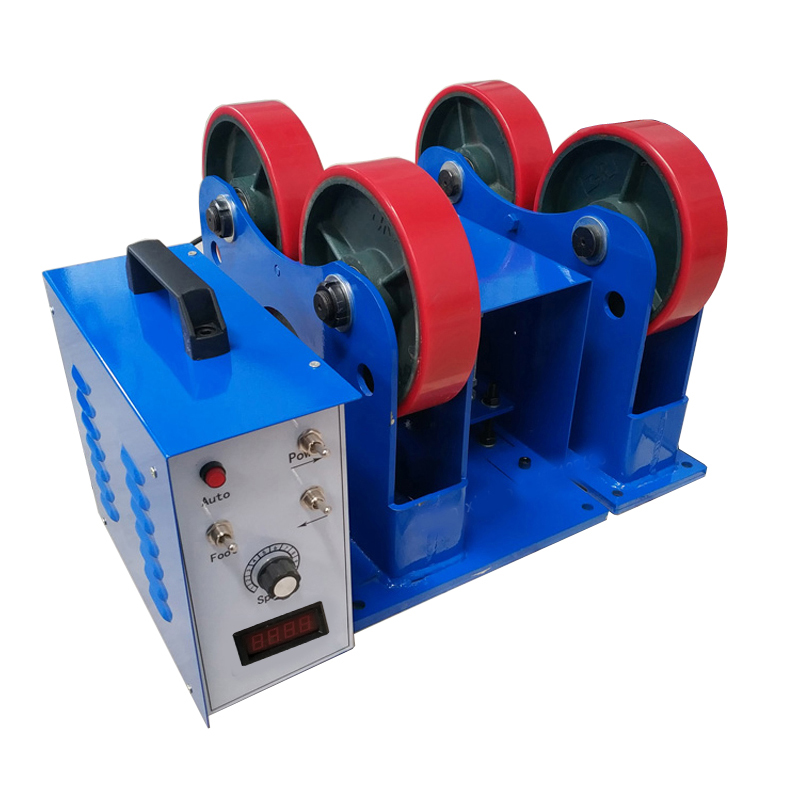

Welding Turning Rolls |
 |
Connected Welding Roller Rack
is professional welding assistant equipment, can be matched with a welding operation machine,a submerged arc welding machine, etc. The machine
is mainly applied to welding of a pipeline including inside and
outside of the pipe.
|
|
Parameter |
|
Model |
XH-1T-A |
|
Working Voltage |
AC 110V 60Hz |
|
Power |
120W |
|
Load Capacity |
2200 LBS |
|
Speed Range |
100～1000
mm/min |
|
Diameter Range |
50～600mm |
|
Roller Type |
50mm(W)×200mm(D) |
|
Operation Method |
Control Box Operation |
|
|
|
Features |
 |
Digital Display Control System
-
A control box and a pedal
pump for speed control. And they can save you a lot of time and energy
because you can control the machine with several simple steps.
-
The control box adopts digital display and it can be hung on the left side of
the machine for easy operation.
-
It can show the speed of the wheel.
|
Adjustable Roller
-
You can adjust the
roller distance to suit different sizes of pipes.
-
Range: 50～600mm.
-
50-260mm
Inner Hole
-
260-600mm
Outside Hole
|
 |
 |
Motor & Polyurethane Wheels
-
Equipped with a powerful motor providing a large driving
force, stable and reliable operation. And no shock during startup.
-
The wheels are coated with a layer of polyurethane to increase friction.
Strong and reliable.
-
It can powerfully grasp the workpiece and make it turn with
the wheel.
|
Wide Application
-
The Turning Rolls Linkage Roller can be matched
with a welding operation machine ,a submerged arc welding machine, etc.
-
The machine is mainly applied to
welding of the pipeline including
inside and outside of the pipe.
|
 |
|
Package Content(022083) |
Welding Turning Rolls 2200LBS*1 Set
Foot Switch*1
Set
Control Box*1
Set
|
|
Diameter of Work piece |
|
 |
|
