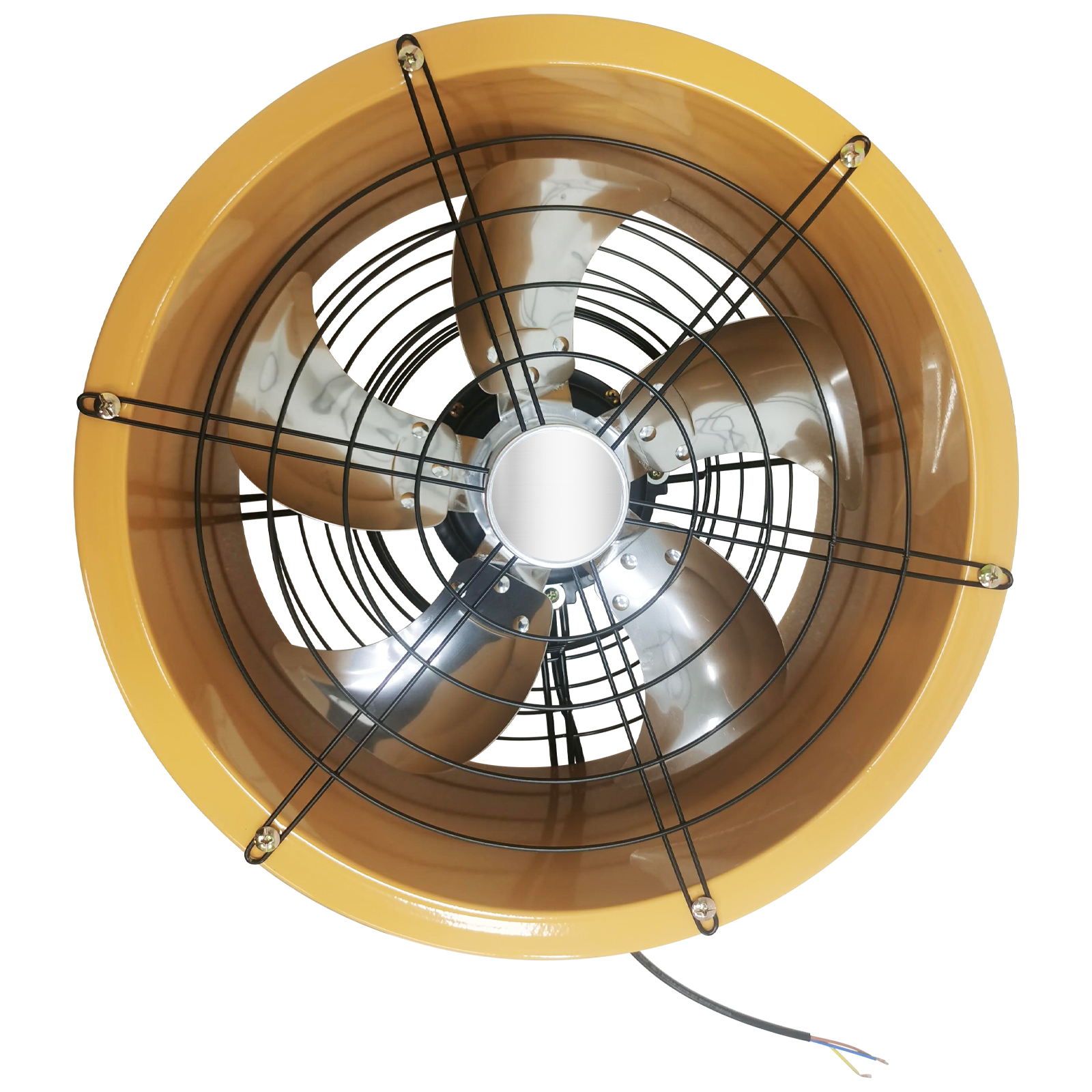

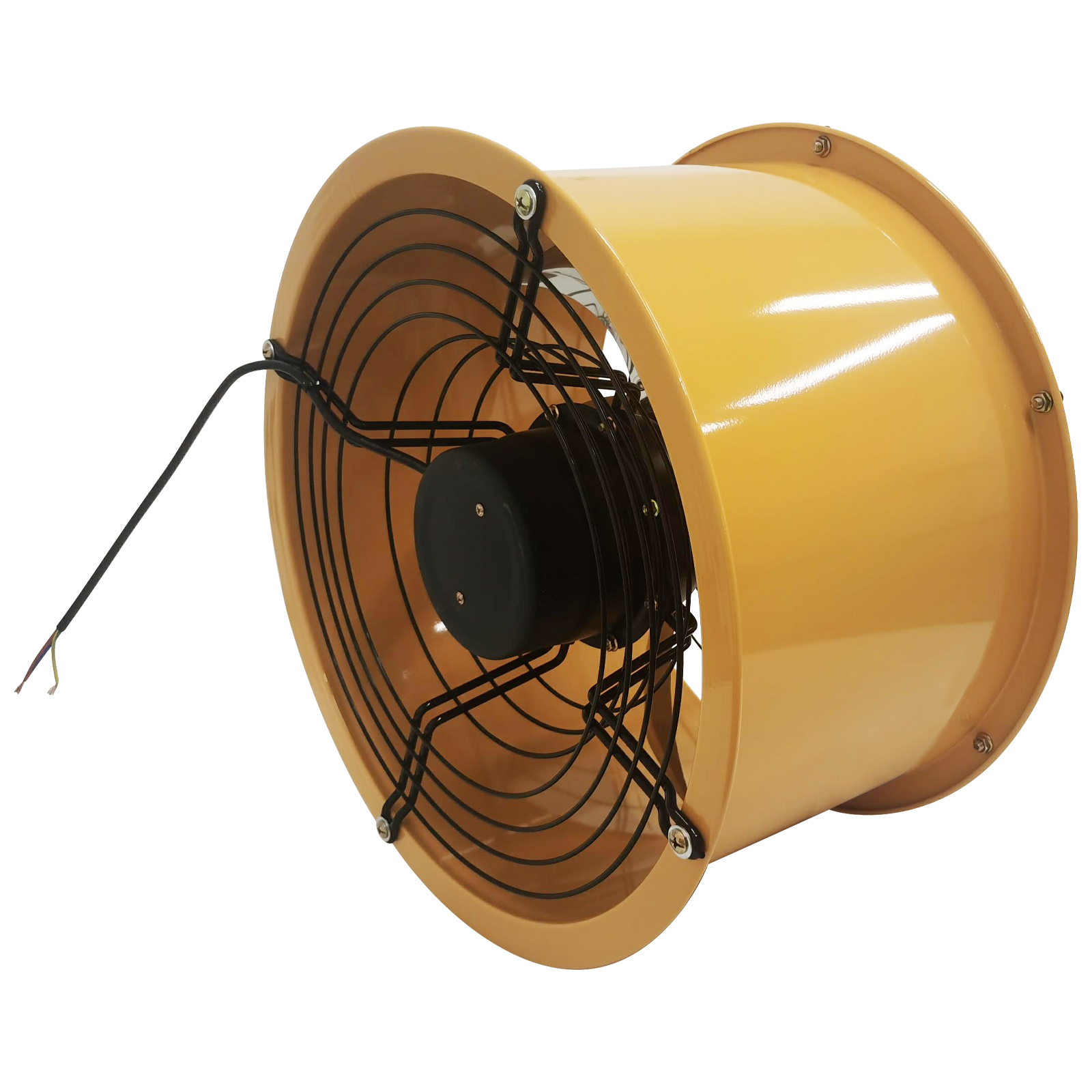

220V 16''Cylinder Pipe Fan
|
|
|
|
|
Feature: It
is suitable for kitchen, warehouse and workshop and so on.
|
|

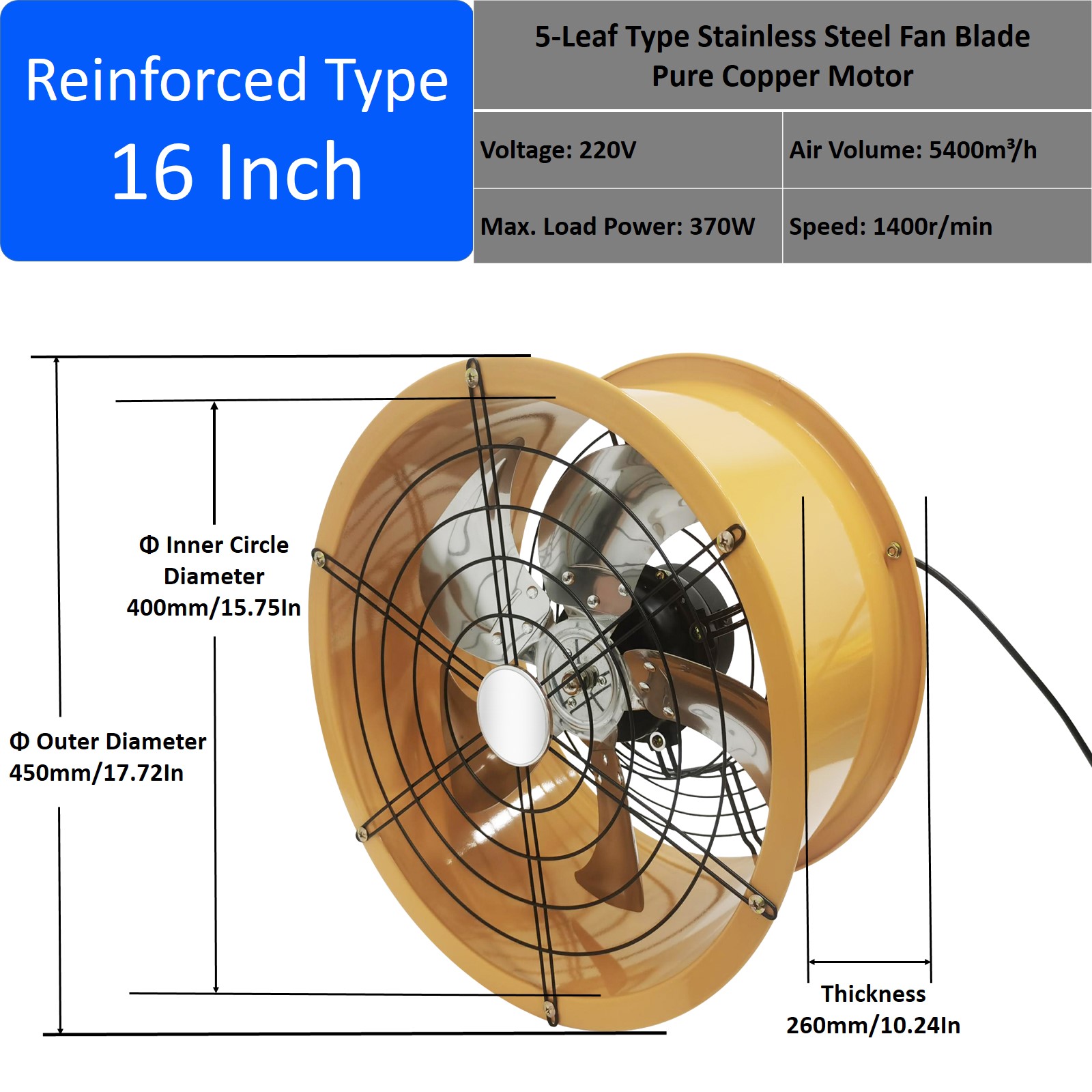

Parameters:
Voltage:220V

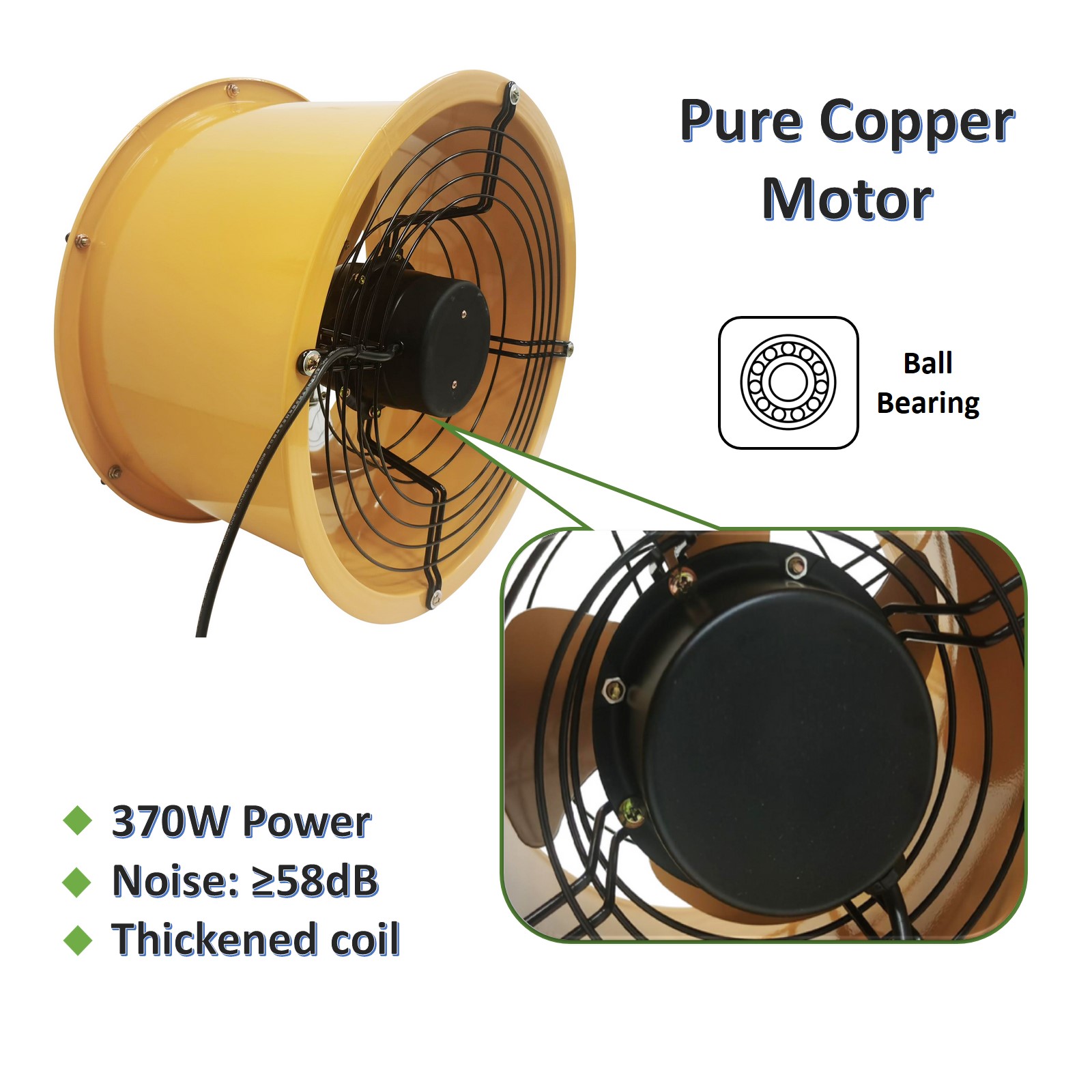

Power:370W
Size:16’’
Air volume :5400m³/H
Inner circle diameter：40cm
Diameter of outer circle
：45cm
Shape thickness ：26cm
Pressure:98pa
Noise:66dB
Speed:1400r/min
|
 |
|

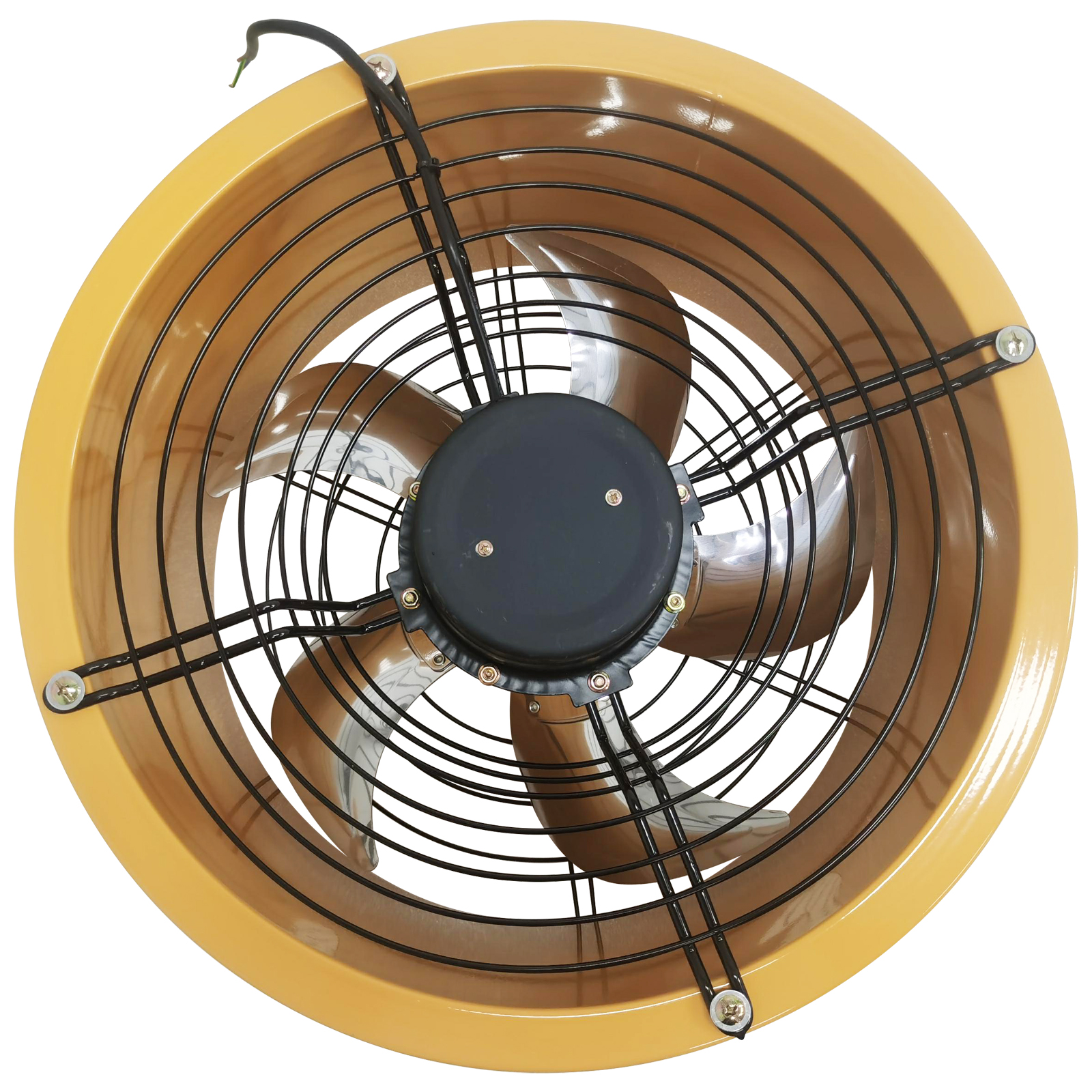

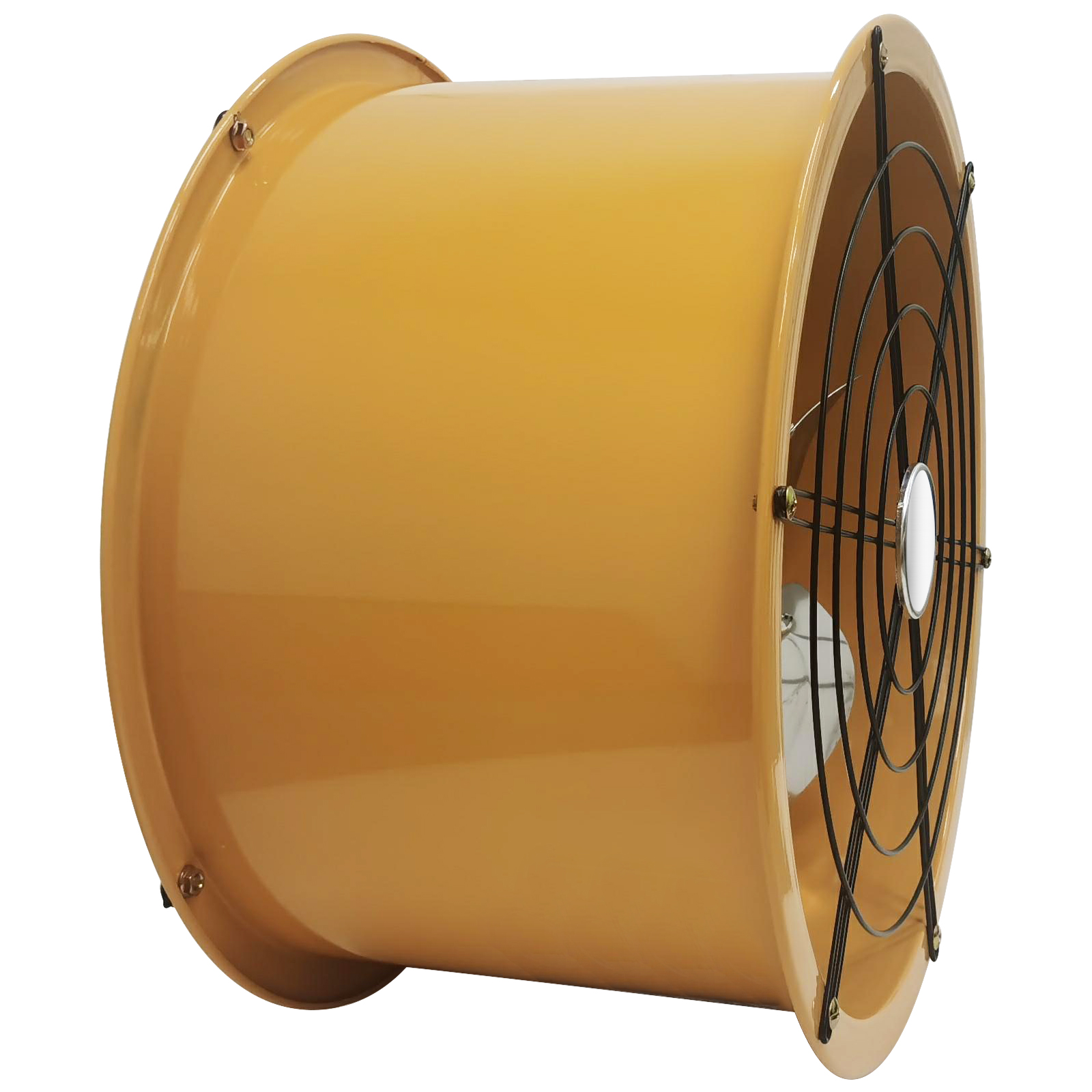

Detail Display |
|
|
 |
 |
 |
 |
 |
 |
|

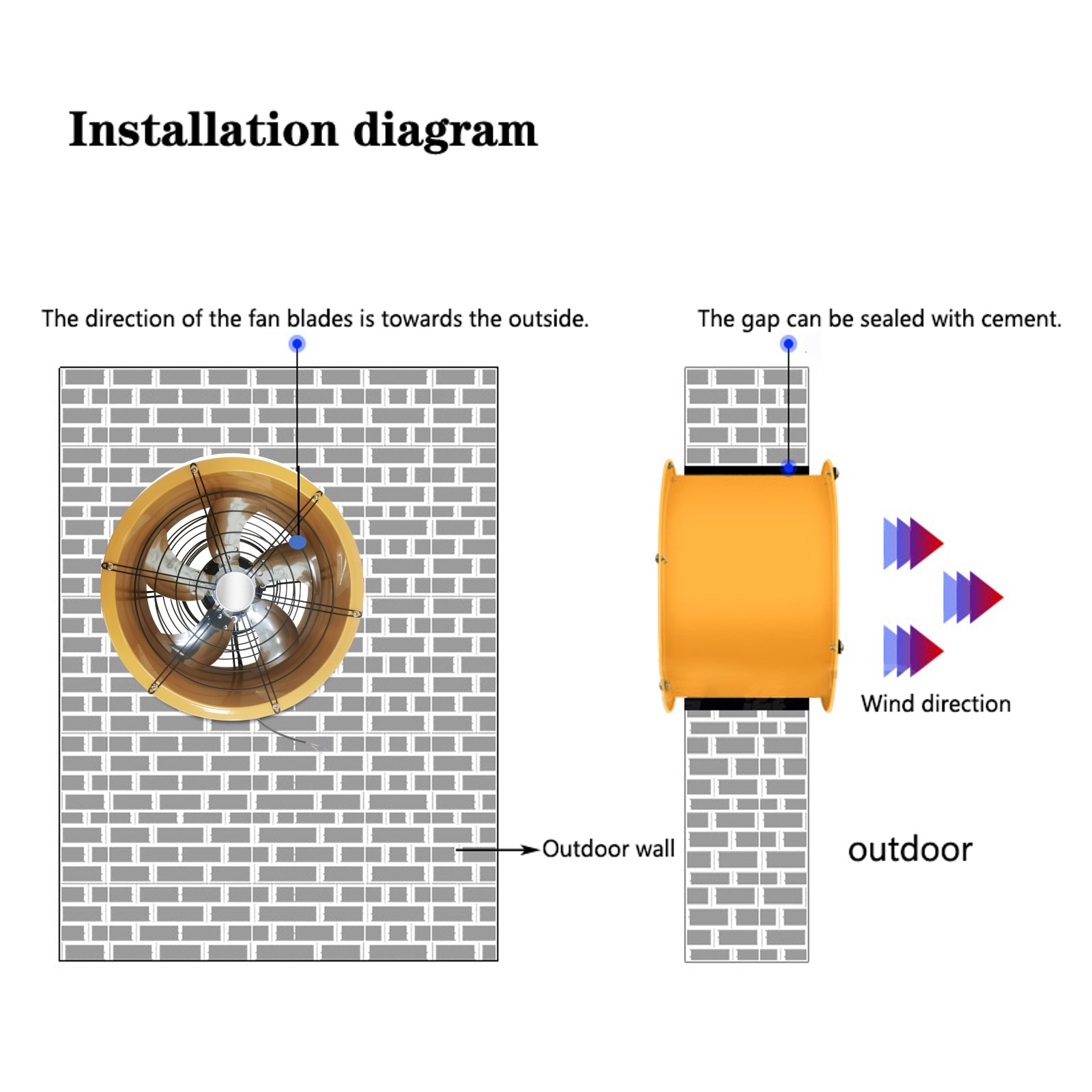

1.When installed, the fan is
adjusted horizontally and vertically to ensure smooth running of the blades.。
2.After fixing the fan, the
remaining space needs to be sealed.
3.If necessary, please remove
the protective net.
|
 |
|
Note:
1.The
color of different factory batches will be different.
Unchanged is the ground wire.
(Color:Yellow and green)
2. Ground wire grounding during wiring (You can also choose not to connect.) |
 |
|
Item included: 022600 |
|
220V 16''Cylinder Pipe Fanx1 |
|
|
|
