Product Overview
110V Intelligent Semi-automatic Pedal Soldering Machine Foot
Pedal Circuit Board
Soldering Machine
 |
| This product is a small device
specially used for soldering, with semi-automatic pedal control.
Easy to operate, precise tin production, accurate temperature
control, automatic smoking, automatic slag blowing, instant
soldering, full solder joints, no need for skilled hands, high-
speed and efficient. Widely used in various USB connector, PCB
board, lamp board, electronic components, switch, motor,
microphone, LED lamp, connector and other products soldering
line. |
| Voltage: |
110V |
| Power: |
160W |
| Working air
pressure: |
8.8lbs-13.2lbs(4-6kg) |
| Material: |
Metal plate |
| Panel
language: |
Chinese and English
bilingual |
| Working
temperature: |
0-50℃ |
| Working
humidity: |
0-70% |
| Package size: |
17.3"*16.9"*20.9" (44cm*43cm*53cm) |
| Net weight/Gross weight: |
30.9lbs(14kg)/36.4lbs(16.5kg) |
|
Note: In addition to the
power supply, this product also needs to be connected to the air
pump or air compressor. |
| Product Features & Advantages |
 |
a.
Display screen
The soldering machine uses
an LCD display with smart control and digital operation.
The interface is more intuitive and easy to operate, Tin
output/tin output speed/tin output mode can be adjusted.
Simple and convenient operation.
|
b.
Automatic cleaning of soldering iron tip
Automatic smoke cleaning
function, no pulling tip during operation, and no
continuous tin. Stabilizes the processing quality of
solder to a certain extent and prolongs the service life
of the soldering iron tip.
|
 |
 |
c.
LED lamp
The use of LED lighting improves the soldering efficiency,
while ensuring the soldering quality, which is not affected by
the surrounding light and is highly adaptable.
|
d.
Iron head temperature controller
The advantages of the iron head temperature controller
mainly include accurate temperature control, improving work
efficiency, ensuring soldering quality, enhancing safety,
energy saving and environmental protection, and convenient
operation.
|
 |
 |
e.
Efficient cooling system
There are vents on the soldering machine, which can timely
discharge the excess heat generated by the machine, prevent
the temperature from being too high, and protect the
machine.
|
f.

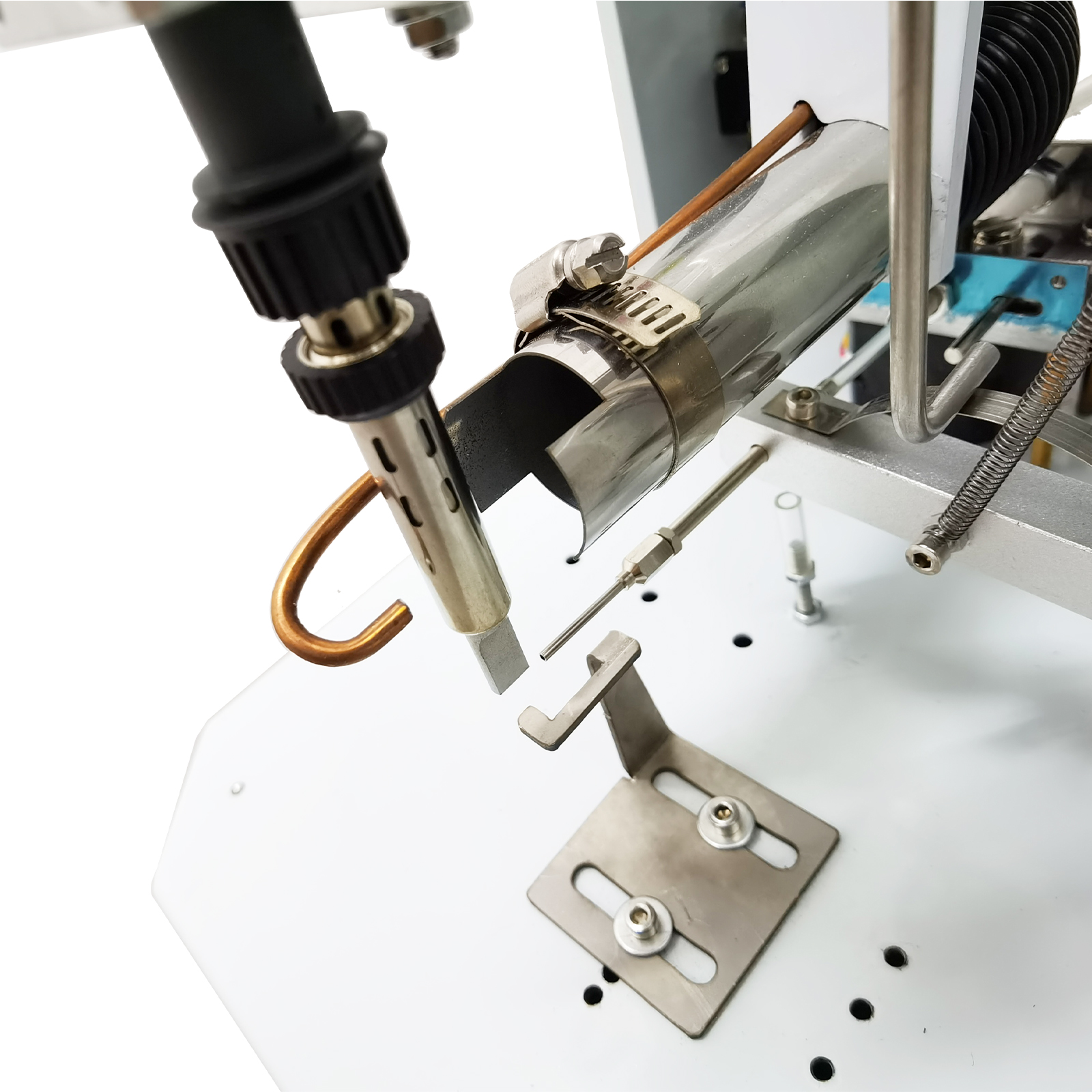

Iron head height adjustment
The proper adjustment of the height of the soldering iron
head can not only improve soldering efficiency and quality,
but also optimize temperature control and reduce the loss of
the soldering iron head, which is an indispensable
adjustment step in the soldering process.
|
 |
 |
g.
Customized fixtures
Support customized fixtures according to the different
soldering products to meet the different soldering needs of
customers.
|
h. Foot pedal
The machine can be controlled by foot pedal to reduce the
workload of hands. Just step on the foot pedal can quickly
control the machine, humanized operation design.
|
 |
|
- Smooth tin output, accurate tin
output, can be adjusted automatically tin return function.
- It
not only improves the accuracy of soldering, but also reduces
the waste of materials, thus reducing the production cost. |
| Product Presentation & Details |
|
Semi-automatic soldering machine *1 |
Pedal *1 |
Accessories package *1 |
|
