Ultrasonic Plastic Tube Sealer

  This machine working stability, high efficiency. Stainless steel material could meet the corrosive products of the end of the seal, once formed, sealing at the same time automatically remove the excess edge. This machine is suitable for toothpaste, cosmetics, food and other hose sealing.

Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supplietc.
With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.
With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,higefficiency.

Power: 1250W
Voltage: 110V
Sealing diameter: 3.1inch (80mm)
Processing height: 7.87inch (200mm)
Weight: 140.8lb (64kg)
Size: 31.5*17.7*41.7inch (80*45*106cm)

Environmental temperature : 0℃ +35℃
Environment humidity: relative humidity below 85%
Air pressure: 0.2----0.6 MPa
Ultrasonic working frequency:20k
Tube height: 50~180mm (adjustable)
Removed more than expected : the edge of a straight line can be removed move than expected
Working table: vertical/horizontal adjustable worktable

1.The use of advanced chips to make the machine stability control.

2.Sealing, trimming, printing, once complete.

3.Sub-water care device can effectively intercept a small amount of dust and fog.

4.Ultrasonic tool head is made of stainless steel, it is sharp edge and durable.

5.Thicker material  makes the machine more durable.

6.This machine needs to be used with air compressor (our machine does not include air compressor).

1. The working environment of the machine shall be dry, and an operator shall wear plastic or rubber shoes;
2. The transducer system shall not be dismounted and replaced when the machine is switched on;
3. Do not put two hands below the tool head to prevent the hands from being injured through ultrasonic waves in case of ultrasonic wave generation during working or test of the machine;
4. The welding die shall not be in direct contact with the base or the metal clamp of the machine in working or test;
5. High-quality ventilating equipment shall be arranged in the operating acoustic field when plastic workpieces with odors are processed;
6. During operation, operation shall be immediately stopped in case of abnormal noise or that the transducer system is heated to 50 DEG C or even higher, and the operator shall test the working frequency of the machine and check whether the machine is normal;
7. Do not switch on the machine immediately after a broken fuse of the machine is replaced, and the machine cannot be switched on until a trained technician checksrelevant parts of the machine to confirm that other faults do not exist in order to avoid extension of the fault;
　

Note:

1.Do not turn on the machine before placing any operating materials, it will burn the fuse.

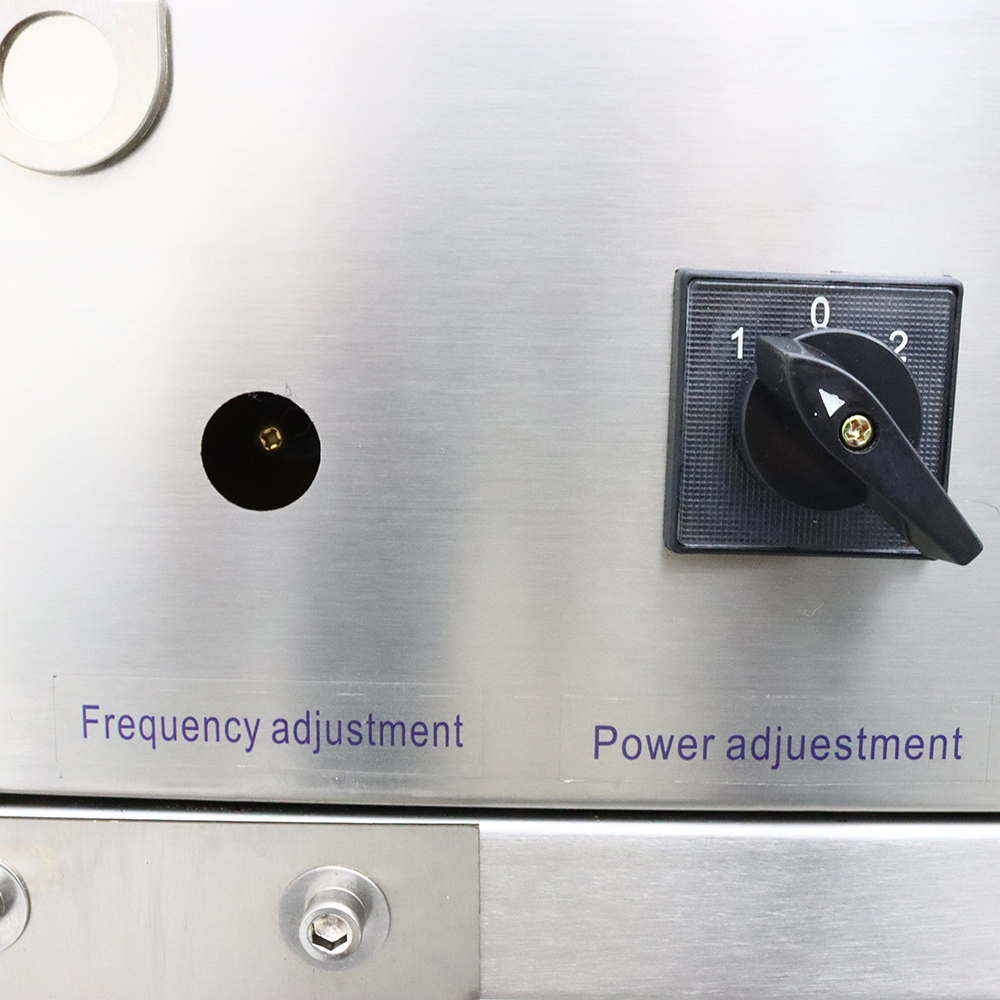

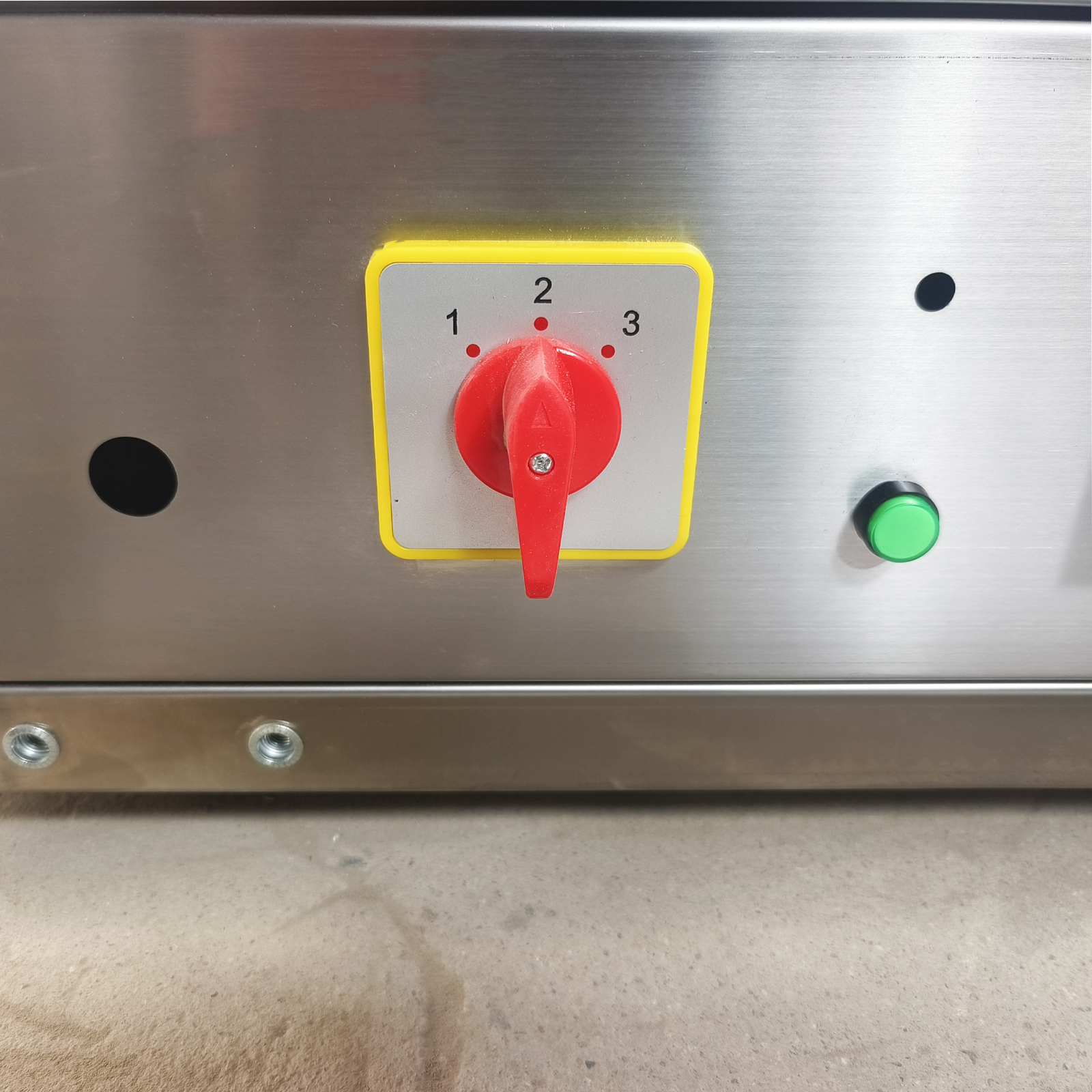

2.Our machines are always used on the first gear when they leave the factory. If customers shift to the second and third gears, they must first check the ammeter. If it is higher than 1, they must adjust the frequency screw to reach 1 before it can work, otherwise it is easy to burn out the power tube.

You can make order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
