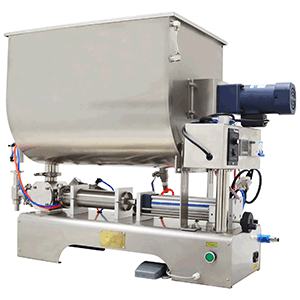

110V Paste Filling Mixing Machine, Piston Filler Machine

   The semi-automatic piston filling machine produced by our company has the advantages of simple and reasonable structure, high precision, convenient cleaning and simple operation. The contact area with the material is made of 304 stainless steel, in line with GMP requirements. The sealing parts are made of PTFE and silica gel. They have the advantages of corrosion resistance, aging resistance, high temperature resistance, good sealing and so on. They are ideal filling equipment for food, pharmaceutical, chemical, daily chemical, petroleum, pesticide and other industries.

  This machine has two methods, foot switch filling and continuous automatic filling; the two filling methods can be switched arbitrarily. It is recommended to use the foot switch for filling at the beginning.

3.This series of models need to be equipped with external air compressor, air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to 0.4-0.9Mpa range.

(Note1:We only sell machines, do not match air compressors, customers need to buy their own.)

(Note2: If you are not sure whether the material can be filled with this machine, please consult before placing an order)

Adjust the speed of the cylinder moving piston rod:
The end near the moving rod (away from the handwheel) is the outlet control valve (Adjust the speed of the cylinder moving rod to push out the material);
The end away from the moving rod (near the handwheel) is the intake control valve (Adjust the speed of cylinder moving rod recovery).

Clockwise downward, the discharge speed becomes slower;
Counterclockwise upward, the discharge speed becomes faster.

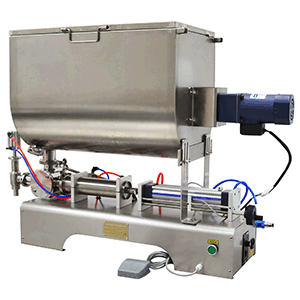

Machines with two types of discharge

assemblies are shipped randomly

This machine is suitable for pepper paste, peanut butter, fruit yogurt and other granular materials, without straw.

To ensure safe production, please read the following precautions carefully:
1. Use a power supply and air source that conforms to the requirements of this machine . The stability of the air source must be maintained under continuous working conditions.
2. Before disassembling, washing or repairing this machine, please be sure to turn off the air source and power supply first.
3. The rear half of the machine (near the control buttons) and the lower part of the machine frame are equipped with electrical control components. Under no circumstances should the body be washed directly with water, otherwise there will be danger of electric shock and damage to the electrical control components.
4. After the power switch is turned off, there is still voltage in some circuits in the electrical control of this machine. When repairing the control circuit, please be sure to unplug the power cord.
5. Do not keep your eyes close to the filling head during work, pay attention to personal safety.
6. Do not put your hand on the central axis of the cylinder during the work process, pay attention to pinching your hands.
7. Before using materials for filling, it is best to clean the machine with detergent first, and then clean it with clean water, so as to avoid oil stains or foreign materials and materials mixing, which will lead to waste of materials and damage to the machine.
When the paste filling machine is not working, please cover the dustproof cover of the hopper to prevent dust or other debris from entering the hopper and causing material waste and machine damage.

Advantages:

You can make order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
